Outrage 21 Wood Locating Diagram

Posted: Thu Jan 21, 2016 9:19 am
by Driller
Does anyone have access to the wood location diagrams for the 21' banana hulls? I haven't been able to locate them with a forum/google search. I am considering purchasing a T top, and doing a lot of highway trailering, I'm concerned about solid anchoring points. Thanks!

Re: wood location diagram - outrage 21

Posted: Thu Jan 21, 2016 10:17 am
by hauptjm
Good luck..if you find one, you might send it to Jim Hebert to include in the resources library here at Continuouswave. The closest I've found is the old manuals: http://media.channelblade.com/EProWebsi ... l%2070's(2).pdf - page 15

Re: wood location diagram - outrage 21

Posted: Sun Jan 24, 2016 8:12 am
by Jeff

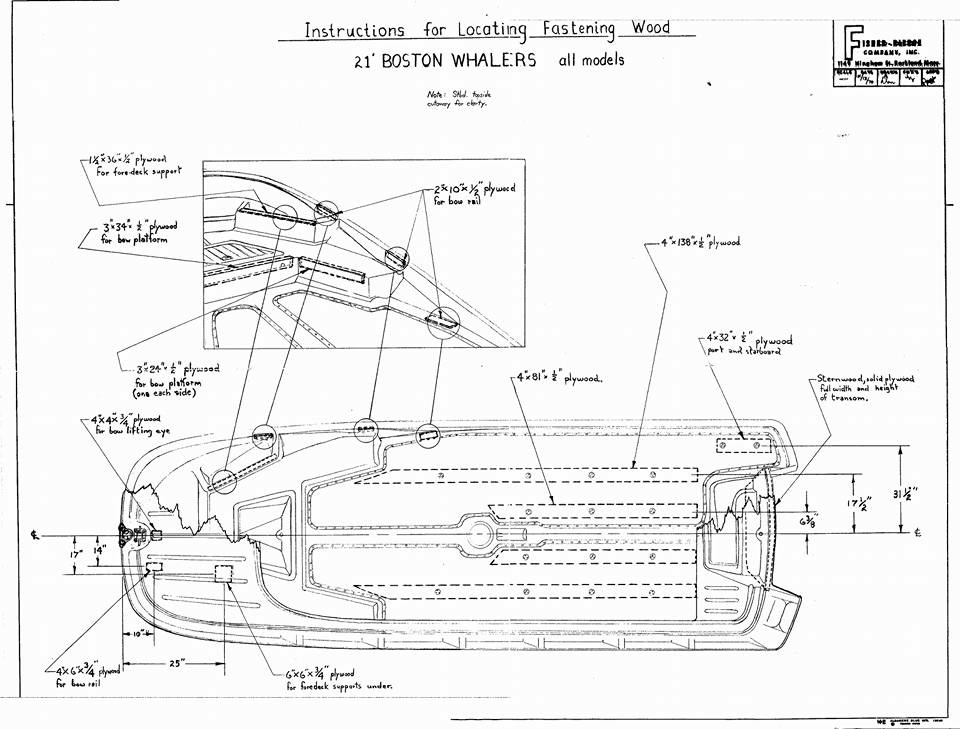

This is from James McPadden's collection

Re: wood location diagram - outrage 21

Posted: Sun Jan 24, 2016 8:16 am
by Jeff
With only 1/2" plywood under the deck and in limited spaces, I personally would not put a T-Top on unless I did a system of epoxy anchors into the floor that could be drilled into to set screws into.

Re: Outrage 21 Wood Locating Diagram

Posted: Sun Jan 24, 2016 11:30 pm
by Driller
Jeff, just what I was looking for. The bases of the T top are 38" apart which should put all or most of the screws into the wood. Considering that its only 1/2" plywood, at a minimum I would fill the screw holes with epoxy and set good, coarse threaded screws before the epoxy cures, and I would bed the bases with 5200, and bolt at least one strut on each side into the console. I think that if the screws bite well it'll probably be OK - and I'll set ratchet straps in all four corners when trailering at highway speeds. Thanks! Paul

Re: Outrage 21 Wood Locating Diagram

Posted: Sun Jan 24, 2016 11:39 pm
by Driller
It shouldn't affect my plan, but after a second look, I think this diagram was for the hulls that were built before the 40 gallon fuel tanks were set. The inner strips of plywood would be right over the tank - or are some of the strips actually in the tank cover? I know there is plywood in the covers and those that I've had out were quite heavy and probably 3/4" thick or better. Not something I would do, but I've seen a lot of stuff screwed into the tank covers on quite a few 19's and 21's.

Re: Outrage 21 Wood Locating Diagram

Posted: Mon Jan 25, 2016 7:41 am
by jimh
I added a link to the wood locating diagram for the OUTRAGE 21 at the REFERNCE article that categorizes on-line drawings.

http://continuouswave.com/whaler/reference/drawings.html

Re: Outrage 21 Wood Locating Diagram

Posted: Mon Jan 25, 2016 9:22 am
by Driller
Great, Thanks to all.
