[Seeks a source of] a parts diagram for a 1993 21 Outrage.

Check at the website WHALERPARTS.COM. They often have PDF documents for more recently made boats. Is there a specific part you are trying to identify?

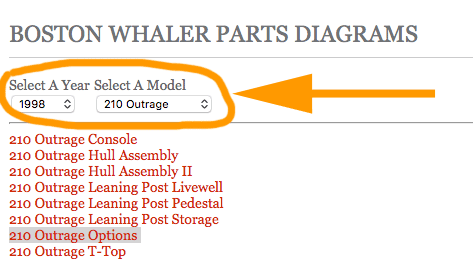

The earliest diagrams offered online by Whaler is 1998. Go to http://www.bostonwhaler.com, select OWNER, RESOURCES, PARTS and [select] year and model [as shown below].

I need to replace the thru hull drain tubes in the transom as well as the drain tubes on the port and starboard sides

To get the replacement part information for the transom drains, perhaps you could contact Boston Whaler customer service. They are usually able to provide very good information on topics like that.

The plastic thru hull parts should be available (via order) through a local whaler dealer. For excellent service, I use Sue Lodel (Parts Manager) @ Twin Cities Marine. They ship to all states and internationally. Call or email her.

Phone (920)793-2715
